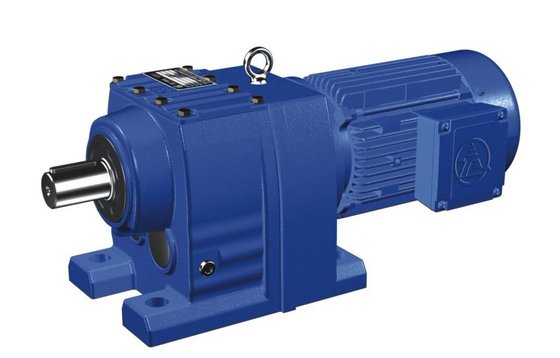

The dependable and performing solution for all in-line drive applications featuring unsurpassed Quality to Price ratio. Foot or flange mounting are possible in any mounting position, making the installation easier than ever.

Torque Range

30 Nm.. 7,200 Nm

Mechanical Rating (n1= 1400 min^-1)

Up to 140 kW

Gear ratio

i n = 4,5... 185

Output

Solid keyed shaft

Input

IEC motor mounting provision Solid input shaft

Applicable AC Motors

IEC-normalized motors, up to 45 kw
Single and dual speed motor

Main Brake Features

DC or AC Supply
Fast Braking and / or brake releasing through
SB, NBR, SBR optional electronic devices

Main Motor Options

Thermistors and thermostats sensor
Forced ventilation
Line driver and push-pull incremental encoder
