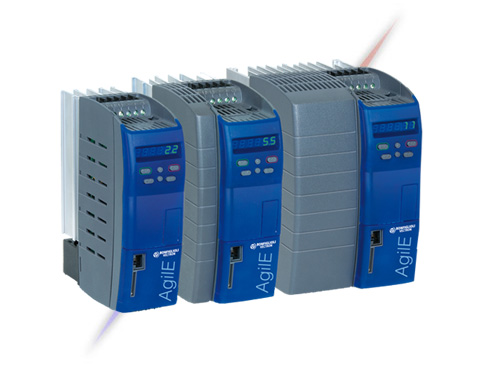

Agile series provide in a sensorless vector inverter innovations able to boost plant efficiency through open loop vector control of brushless motors, MMC memory cards and web control. Agile inverters are easy to install, program and quick to start-up without the needs of specialized resources.

Power Range

.

0.25 KW - 11 KW / three-phase 320 V ... 530 V / 45 Hz... 69 Hz

Motor Compatibility

Two types of motor: Asynchronous AC motors Permanent magnet synchronous (brushless) motors

Type of Control

Selectable control function: V/f control for asynchronous motors Sensor-less vector control for asynchronous motors Sensor-less vector control for brushless motors

Degree of Protection

IP20 (EN 60529)

Main Hardware Features

Power supply from common DC bus Integrated braking module Short circuit / ground fault protection Integrated Safe Torque Off safety system Plug-in and programmable control terminals 6 digital inputs, 2 multifunctional A/D inputs 1 multifunctional I/O, 1 digital output 1 multifunctional A/D/pulse output, 1 relay output (alarm) available power outputs: +24 V DC, +10 V DC optional separate 24 V DC electronic power supply standard serial interfaces: RS-232, RS485, Systembus Integrated Modbus

Optional Expansion Modules

Resource Pack memory card

Optional communication modules

Profibus-DP, CANopen

PC Software

VPlus suite

Main Software Features

Permanent motor tuning Safe-Torque-Off function Energy saving function Ready to use application masks Integrated maintenance wizard Alarm history Motor and inverter state memory Autodiagnostics Integrated PLC function with graphic development environment Integrated oscilloscope function Customisable units of measurement
