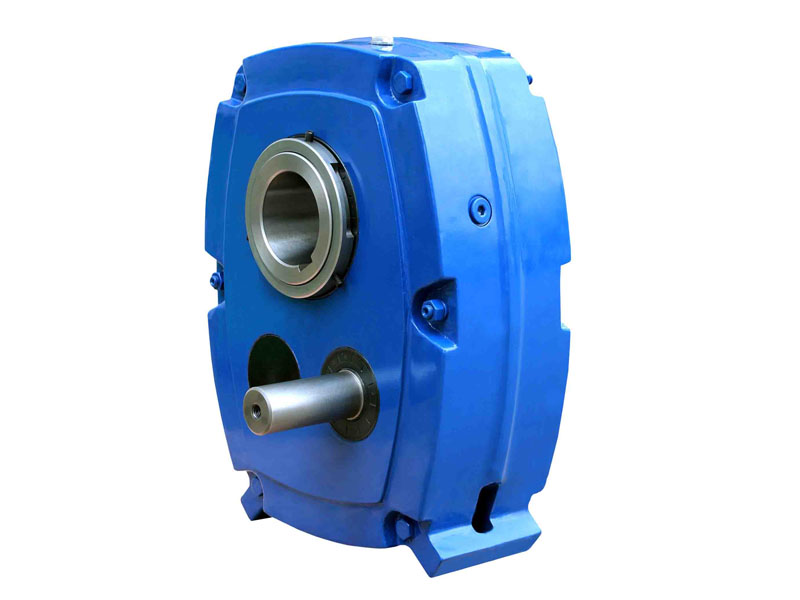

The TA series has long established itself in the industry until become a best seller for the quarry and mine applications where absolute reliability and low maintenance are key factors. Also appreciated is the backstop option that prevents backdriving in case of incline conveyors.

Torque Range

150 Nm.. 16,000 Nm

Mechanical Rating (n1= 1400 min^-1)

1,1 KW ... 156 KW

Gear ratio

5,0... 31,5

Output

Keyed hollow shaft Up to three bore options per frame size

Gear Case

Sturdy cast housing suitable for outdoor installation

Backstop

Available on all frame sizes – externally accessible
